Surfer 8具有的強大插值功能和繪制圖件能力，已經使它成為用來處理XYZ數據的首選軟件,是地質工作者必備的專業成圖軟件。可以輕松制作基面圖、數據點位圖、分類數據圖、等值線圖、線框圖、地形地貌圖、趨勢圖、矢量圖以及三維表面圖等；提供11種數據網格化方法，包含幾乎所有流行的數據統計計算方法；提供各種流行圖形圖像文件格式的輸入輸出接口以及各大GIS軟件文件格式的輸入輸出接口，大大方便了文件和數據的交流和交換；提供新版的腳本編輯引擎，自動化功能得到極大加強。


Surfer® Version 8

A Powerful Contouring, Gridding, and Surface Mapping
Package for Scientists and Engineers

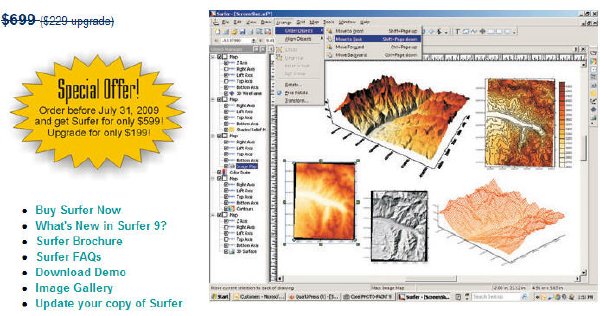

Surfer is a contouring and 3D surface mapping program that runs under Microsoft Windows. It quickly and easily converts your data into outstanding contour, 3D surface, 3D wireframe, vector, image, shaded relief, and post maps. Virtually all aspects of your maps can be customized to produce exactly the presentation you want. Producing publication quality maps has never been quicker or easier.



相關截圖

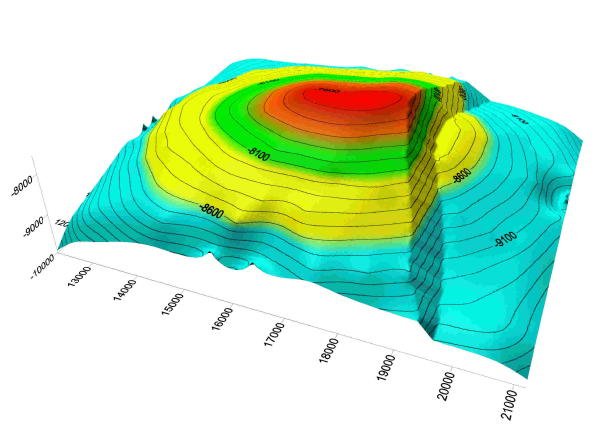

"Structure map of a faulted gas producing structure"


Mike Law of Subsurface Consultants & Associates, LLC, (www.scacompanies.com) submits this image created in Surfer 8, to illustrate the slope of a faulted gas producing structure. The image was created with help from Alan Cherry, for use in Subsurface Consultants & Associates geologic mapping classes.




"Water Supply Project"

Abbas Goli writes:

"Pooyeshgaran-e-Kavir is a consulting engineering firm that works on environmental issues, watershed management, urban planning, and mostly GIS.

"The sent images and plats are related to a water supply project for agricultural consumption in the village Aftar located in Semnan, a province in Iran. The project phases are as below:


1.Calculating the points elevations of the area

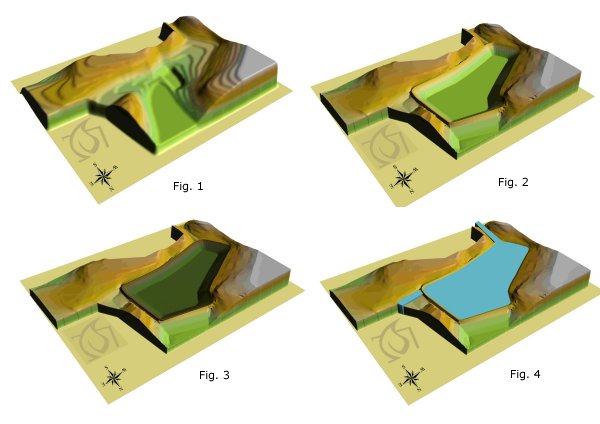

2.The points interpolation and drawing the contour line and the 3D image of the area (figure 1).

3.The best image for constructing the storage supply was selected from the 3-D image in order to reach the maximum storage of water and minimum amount of fill and cut (figure 2).



4.The fill and cut process was performed according to figure 3.

5.The bed and the body of the construction were covered by a polymer sheathing to reduce the permeability and reach the maximum usage of water storage.



6.And finally the water withdrawal phase

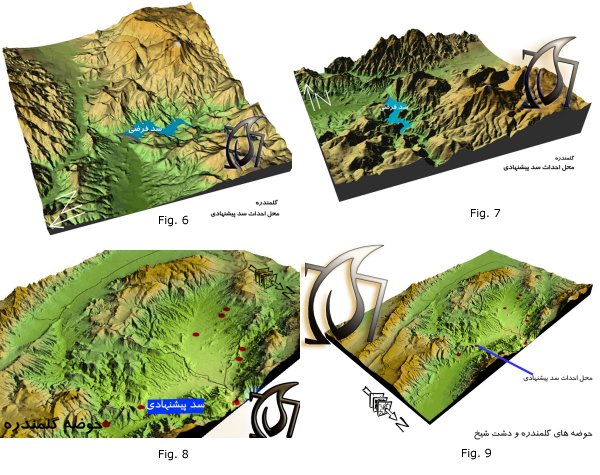

"Currently, our firm has a project in hand, dealing with the investigation of the flood in Golestan province. A base map was provided for the staff, using the Surfer software to help them adopt themselves to the method. With this map, the staff could easily propose their plans and ideas; and it was such that a dam was suggested to reduce the flood risk and peak only by illustrating the flow lines using the Surfer. The following studies proved the recommendation (figure 9-8-7-6).

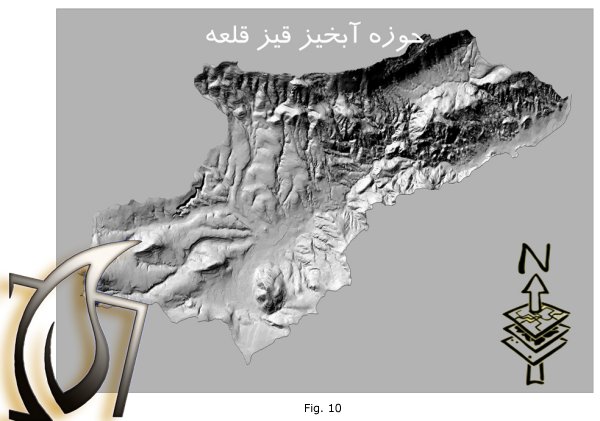

"Since this software has a proper capability to illustrate the 3D location of the area, and also provide the Shaded Relief Map, it can help the erosion experts to identify the erosion forms easily (figure10).

"The software may be applicable in other areas of study if some other facilities are included, and can be comparable with many other important softwares."
