資料介紹

• CAD輔助設計軟件工具

軟件類型：行業軟件
軟件性質：免費軟件

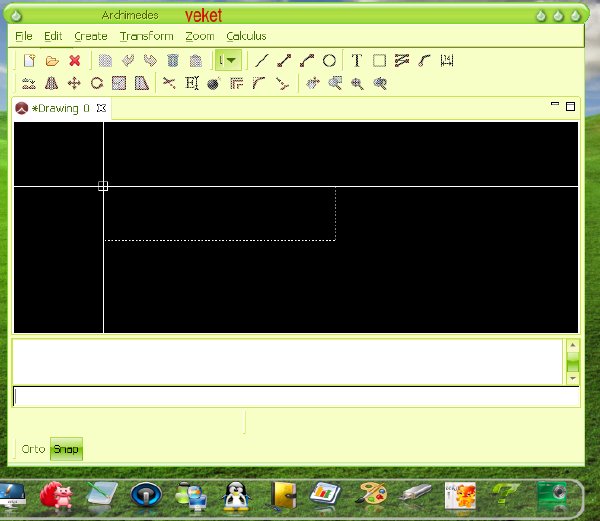

操作系統：veket
應用平台：veket-2/veket-3/lucky8k-veket-1/lucky8k-veket-2
網站鏈接：archimedes.incubadora.fapesp.br

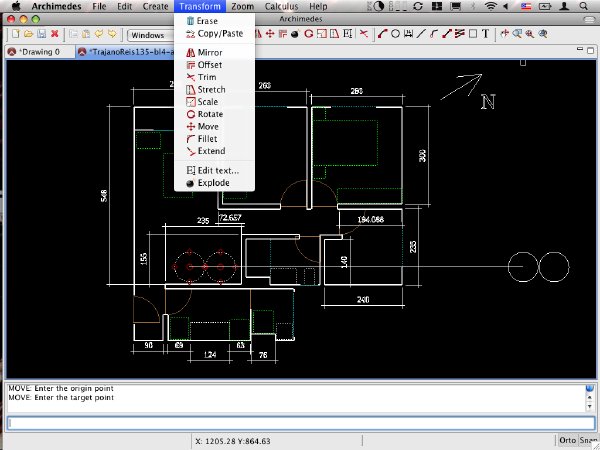

　　Archimedes是一個計算機輔助設計(CAD)解決方案，專注於建築設計。雖然並不是所有人都認為Archimedes現在的版本是十分成熟的，它仍然是一個很有前途的產品。商用CAD系統中的大部分繪制功能，Archimedes都已經支持。然而，它與其他CAD系統的互操作性仍有待提高。但設計也可以導出為可縮放向量圖形(SVG)格式，允許其他人分享您的設計，而不需要安裝該軟件。
　　Archimedes是一個即將面世的很棒的項目，始於巴西，他們的目標是創建一個真正的AutoCAD的替代品，但將更加適合於建築設計。

　　基於eclipse開發的計算機輔助設計（CAD）軟件，其目的是滿足各種CAD繪圖需要。其項目目標是希望開發出比當前廣泛使用的AutoCAD更適合於建築領域的CAD軟件-Archimedes will be a Computer Aided Design (CAD) program developed side by side with architecture offices in order to fulfill all their needs. This way, we hope to develop software better suited for architects than the currently widely used AutoCAD.



Archimedes - "The Open CAD" - (aka Arquimedes) is a computer-aided design (CAD) program being developed with direct input from architects and architecture firms. With this design philosophy, the developers hope to create software better suited for architecture than the currently widely used AutoCAD, and other available CAD software.[1] The program is free software released under the Eclipse Public License.

Features

* Basic drawing tools
o Lines, Polylines, Arcs and Circles.
o Editable Text
o Explode
o Offset
* Advanced CAD functions
o Trimming
o Filleting
o Area measurement
* Miscellaneous
o Autosave
o SVG export
o PDF export

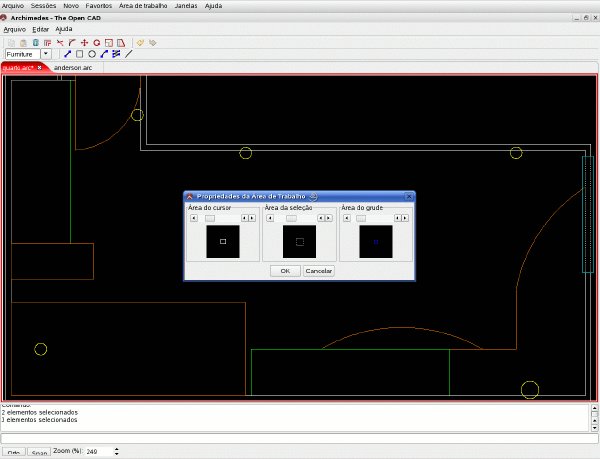

o English, Portuguese, and Italian language support

Integration with other CAD Systems

Archimedes uses its own XML-based open format, which resembles SVG. It does not yet include support for other CAD formats, but DXF support is planned.[citation needed]

Development

Archimedes is written in Java, and the latest version runs on Windows, Mac OS X, Linux/Unix based systems, and might run on platforms that have are supported by LWJGL and a Java Virtual machine on version 1.5.0 or later.

History

The Archimedes Project started as a collaboration between a group of programmers and architecture students at the University of São Paulo, in Brazil, in 2005. The project is currently being worked on as free and open source software. There is a team of students from the University working on it as collaborators under the coordination of Hugo (project leader) but everyone is free to contribute with plugins and/or patches.
