資料介紹

• CAD輔助設計軟件工具

語言：多國語言
網址：http://www.dicad.de
類別：動態互動式圖形CAD系統


DICAD 包括了：平面、縱斷面、橫斷面、端部和3D建模五個部分。每個模群組的開發都凝聚著工程設計者的智慧結晶和程式設計者的精巧構思。
軟體特色：
直觀快捷的縱斷面設計
能同時進行任意多條道路縱斷面設計，允許極大的斷鍊、變坡點與地面中樁個數；縱斷面可通過拖動精確地滿足高程控制和選用各種不同限制設計出理想方案；隨時檢查輸入數據的錯誤與設計方案的合理性，每個命令提供在線輔助敘述；拉坡時提供概略土石方及土方累計曲線，最終進行技術指標分析；可任意定義縱斷面設計圖框大小、圖內內容、順序、精度、標尺高低、斷鍊間隔，等等。
功能完善的橫斷面設計
文件準備極其方便直觀，全部採用對話方塊互動方式（例如：邊坡型式文件、邊坡設計文件、擋牆型式文件、擋牆設計文件、端部數據文件以及邊溝文件等等），橫斷地面線數據採用互動輸入及圖形檢查；對戴帽失敗或設計不滿意的斷面圖可互動進行修改，所有數據隨之自動更新。立交端部高程數據圖可整個立交一次完成，效率更高。
　
方便高效的端部設計
本系統可互動完成立交端部高程圖的設計，操作過程方便靈活：可靈活設定標注位置、間隔、方向；可標注單樁、也可同時標注多個樁號；可標注單點、也可進行多點標注；不限制必須解除多餘的線體、整個立交多個端部可同時進行，互不影響；一次定線、可隨時修改；資訊永駐、可分期成圖。

DICAD Systeme GmbH is one of the leading vendors of CAD software in the field of formwork and reinforcement planning STRAKON is a general CAD system for the preparation of all types o construction drawings and has specific modules for structural engineering design. It is a basic 2D-system with 3D extensions. A major advantage of STRAKON is its associative file structure. For example, when the length of an element is modified by moving its formwork outline, all related dimensions, hatches, reinforcement and so forth are automatically adjusted to fit the new shape. This enables you to rapidly, easily and professionally make modifications whenever need arises without extensive extra effort.

Those intended to use STRAKON such as designers, engineers and technicians played a significant role in its development.

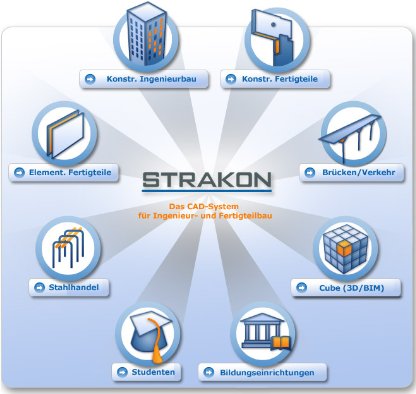

STRAKON/S: The high end variant of our CAD product family. All tasks creating formwork and reinforcement plans for building, engineering, industrial and bridge construction as well as for the pre-fabricated concrete part planning can be comfortably covered by this product.

Homepage: http://www.dicad.de/dicad/produkte/produkte.html



System requirements:
Windows ® 95/98/ME and NT 4.0/2000/XP
Office 97/2000 and XP
